What Is Lidar & How Is It Making Self-Driving Cars Safer?

Posted by FF Team

Light Detection and Ranging (LIDAR) is the apex of mapping  technology. Discover the origins, operational mechanics, and innovative  uses of this growing lynchpin in the development of autonomous vehicles.


What is Lidar?

Light Detection and Ranging (LIDAR) scanning is the latest  development in surveying technology, advancing on the shoulders of its  predecessors – sonar and radar. Instead of using sound or radio waves to  scan its environment, lidar utilizes laser light pulses. > “Lidar  systems can literallly map their surroundings at the speed of light.”


In doing so, lidar systems can literally map their surroundings  at the speed of light. Its versatility in direct air and in the vacuum  of space allows lidar to operate on a short-wave, near-infrared optical  signal – resulting in a much finer scan accuracy than longer waves, such  as microwaves, could allow.


This technology was originally developed by NASA and the U.S. military 45 years ago to track lunar and satellite distances. In 1995, the first commercial use of lidar was commenced by a United States Geological Survey project to map coastal vegetation growth on Assateague Island


As lidar systems have become more compact,  increasing applications have been unveiled, leveraging the technology’s  versatility, accuracy, and unprecedentedly swift data acquisition. Most  notably, carmakers are leveraging lidar capabilities as a key component  in their race to develop safe, self-driving vehicles.

How Does Lidar Work?

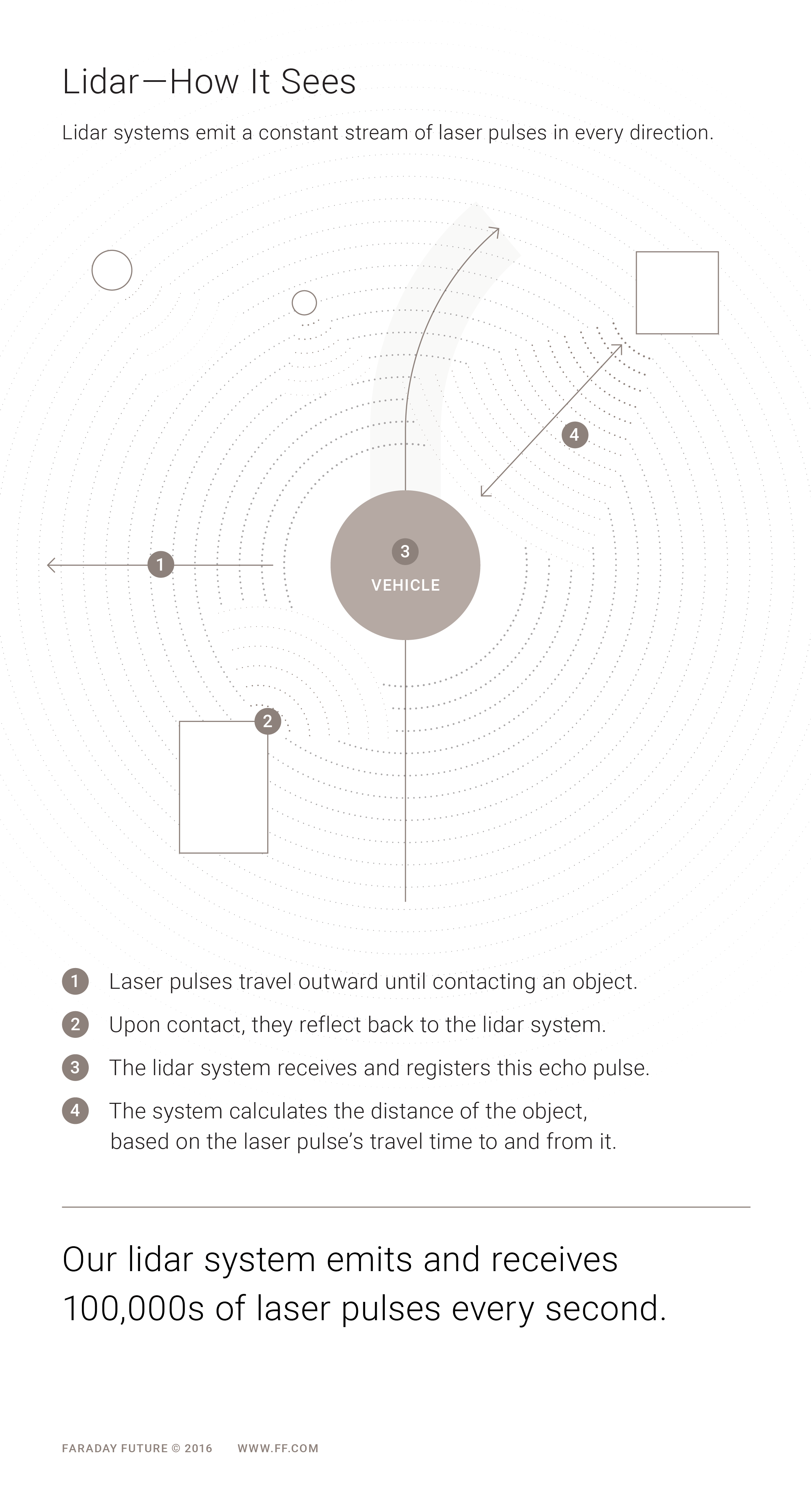

From a distance, lidar functions very similarly to sonar. Sonar  systems emit sound waves that travel outwards in all directions until  making contact with an object, resulting in an echoing sound wave that  is redirected back to the source. The distance of that object is then  calculated based on the time it took for the echo to return, in relation  to the known speed of sound.

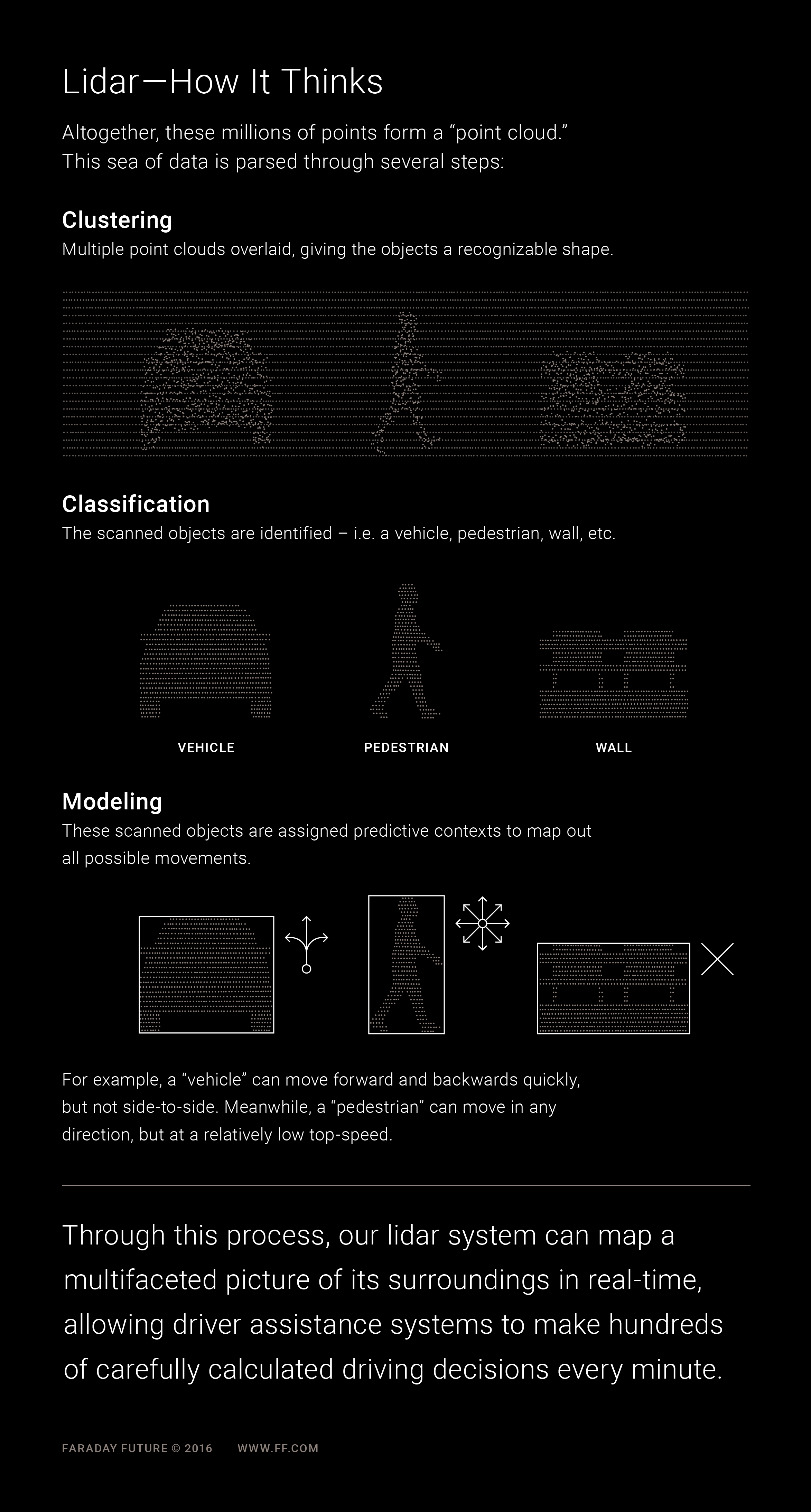

Lidar systems operate under this same principle, but do so at the  speed of light – more than 1,000,000 times faster than the speed of  sound. Instead of emitting sound waves, they transmit and receive data  from hundreds of thousands of laser pulses every second.  An onboard computer records each laser’s reflection point, translating  this rapidly updating “point cloud” into an animated 3D representation  of its surroundings.

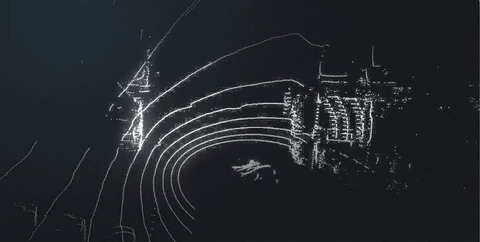

A bird’s-eye view of how a lidar-enabled vehicle would experience and navigate a crowded parking lot.

A  lidar system consists of four key components: a transmitter to emit  laser pulses, a receiver to intercept pulse echoes, an optical analyzing  system to process input data, and a powerful computer to visualize a  live, three-dimensional image of the system’s surroundings.


When integrating multiple laser transmitters, tracking  capabilities are exponentially increased, receiving millions of  individual reflection points simultaneously. Constant spontaneous  updates build out an astonishing level of data detail and scope.

Uses for Lidar

The increasing power and portability of lidar systems are being  embraced as it is integrated into new and exciting research functions,  Hollywood productions, and – most significantly – in transforming the  way we traverse our roadways. Ecological organizations, for example,  have used it to track tree growth over sprawling ecosystems.  Airplanes equipped with lidar soar overhead, and – even when travelling  at cruising speed – are able to catalogue individual leaves and  branches by the billions in a single sweep.


NASA has used lidar to calculate stratospheric temperature by measuring the density of specific elements in the atmosphere  from afar, while environmental scientists are using it to chart the  topography of the ocean floor. Transportation agencies have also  leveraged lidar to map roadway systems and surrounding infrastructures.


Filmmakers have incorporated this technology to chart rare  environments or objects that cannot be used in production – like  consecrated ruins and fragile artifacts – to recreate them in CGI. A new breed of prop cars can actually be digitally reskinned to mimic any four-wheeled vehicle, when employing lidar scans.


Lidar in Consumer Cars

In the automotive industry, radar has long been utilized to  automatically control speed, braking, and safety systems in response to  sudden changes in traffic conditions.


Today, automakers have begun to integrate lidar into Advanced  Driver Assistance Systems (ADAS) in order to visualize the ever-changing  environments their vehicles are immersed in. The resulting wealth of  data from automotive platform incorporation can allow ADAS systems to  make hundreds of carefully-calculated driving decisions each minute.

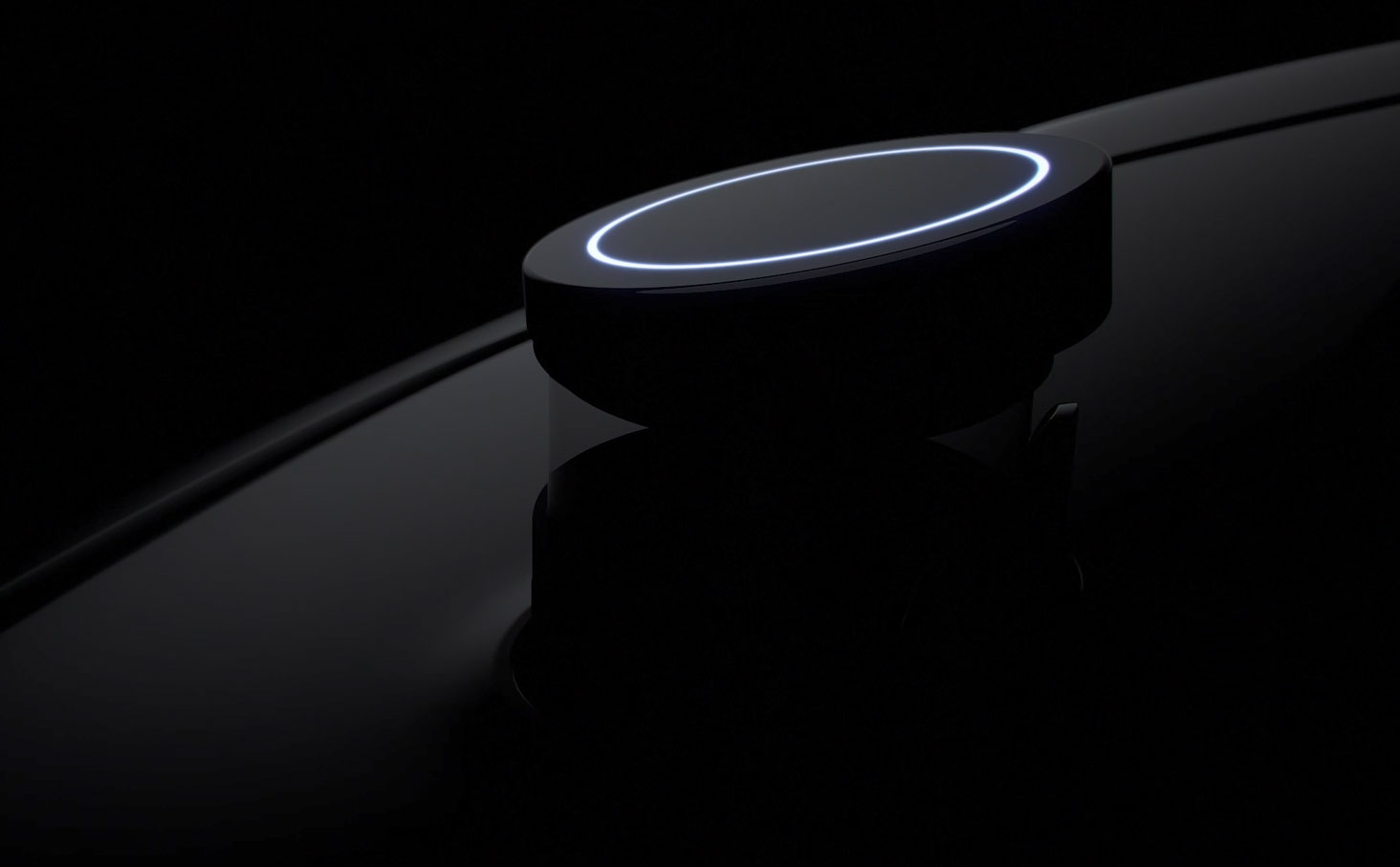

Our lidar system will be centrally located, but elegantly incorporated. Always available, but never imposing.

We are embracing this innovative technology as a core component in  developing new driver assistance features that will ultimately guide our  journey in delivering a true fully-autonomous vehicle, without  compromising safety. As one of the first carmakers to integrate lidar  into our production vehicles, we at FF have a responsibility to set an  example with our self-driving system – to develop this new paradigm  carefully, conscientiously, and courageously.


All images used are for illustrative purposes only.
